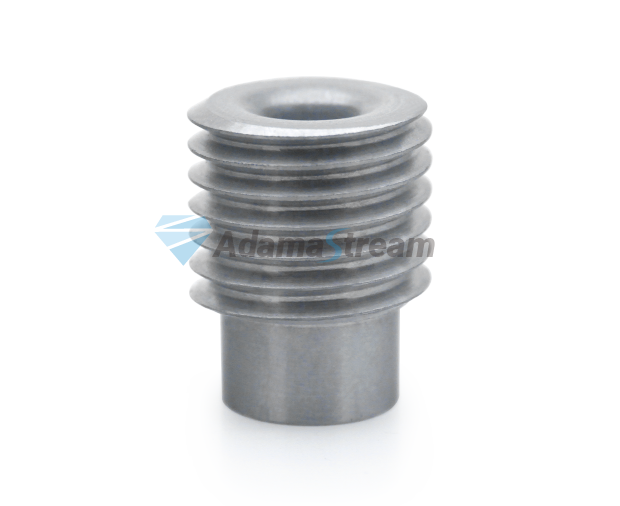

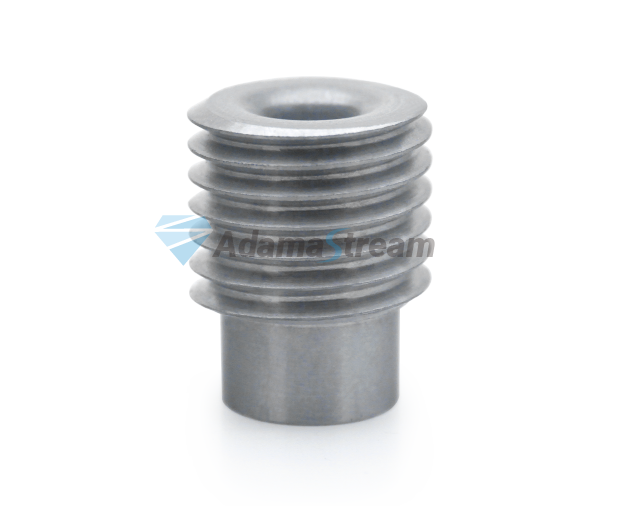

Tungsten carbide nozzles are primarily used in PDC drill bits and cone roller bits for flushing, cooling, and lubricating drill bit tips. They also help clean stone chips at the well bottom with drilling fluid under high-pressure conditions, vibration, and the impact of sand and slurry during oil and natural gas exploration.
These nozzles feature a straightforward design, exceptional strength, high wear resistance, and robust impact resistance. PDC bit nozzles were recognized as one of the three groundbreaking drilling technologies globally in the 1980s. Field applications have demonstrated that diamond bit drilling excels in soft to medium-hard formations due to its extended service life, reduced downtime, and consistent bore quality.
Nozzles for PDC bits primarily serve the purposes of cooling water and washing away mud. Depending on the geological environment of the drilling site, we select different water flow rates and hole sizes for the tungsten nozzles to optimize performance.
3/8″-24 thread, commonly used for road sign cleaning
working under presure 4137bar/60,000psi
1/4″-28 thread to replace 3026/3606, OS4
working under presure 4137bar/60,000psi
3/8″-24 thread to replace 4065/4067
working under presure 4137bar/60,000psi
7/16″-20 thread to replace 3076/3604, Type 976, OS7
working under presure 4137bar/60,000psi
3/8″-24 thread, 19mm length with 3/8″ Hex
working under presure 4137bar/60,000psi
3/8″-24 thread, commonly used for road sign cleaning
working under presure 4137bar/60,000psi
M10*1.5 thread to replace 3161/3688, Type 965, Type L Type P, Form 21, Style 9/10
M10*1.5 thread to replace 3161/3688, Type 965, Type L Type P, Form 21, Style 9/10
We design cleaning solutions that meet your needs. Whether you need to increase safety, maximize production capacity or reliability, or reduce costs, we deliver.
