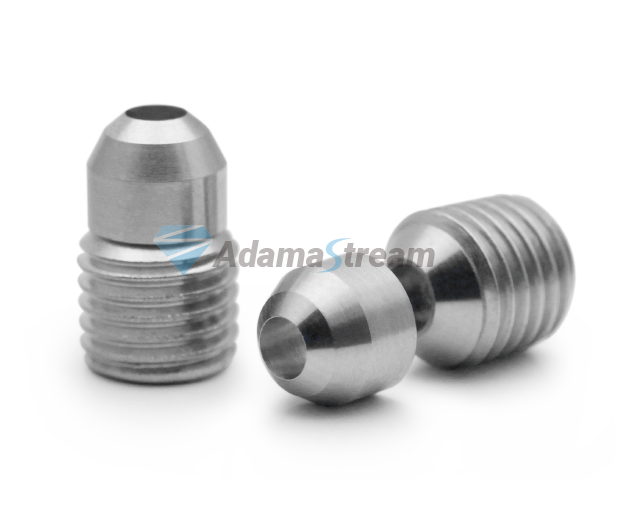

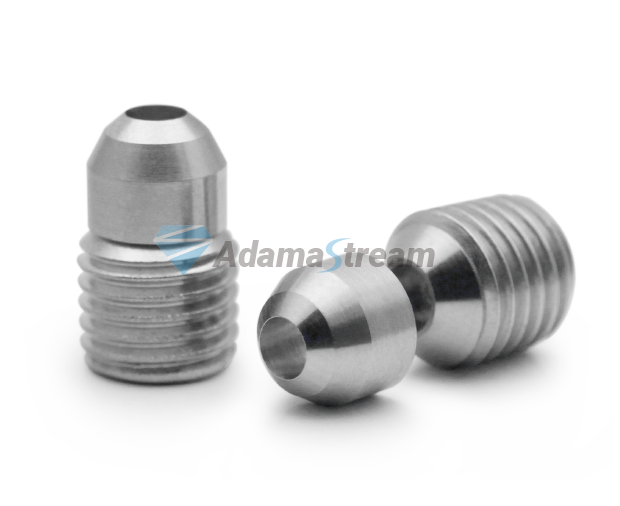

ADM13 Sapphire Nozzles

  • Model No.: ADM13
  • Replacing: Type 082
  • Model No. of Sealing Lens: ADM13SL
  • Remark: Sealing Lens needs to be purchased separately.

Description

Our sapphire nozzles are designed for 60,000 psi (4137 bar) pressure, providing stable and efficient performance. These nozzles deliver consistent performance and exceptional durability in a wide range of industrial cleaning, Hydro demolition, and surface preparation & treatment tasks.

Request a Quote
Share

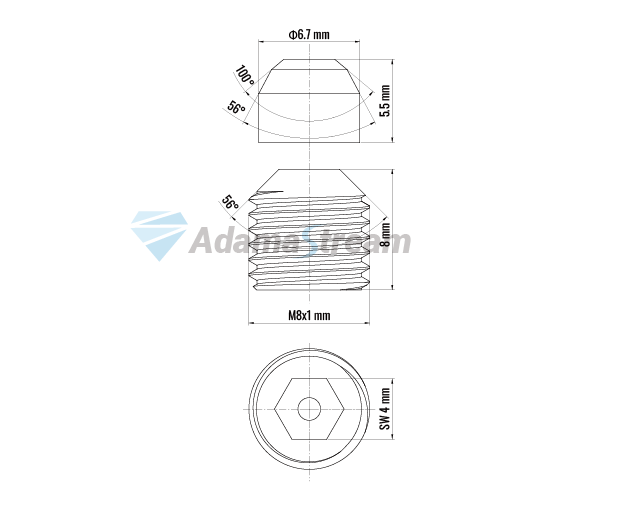

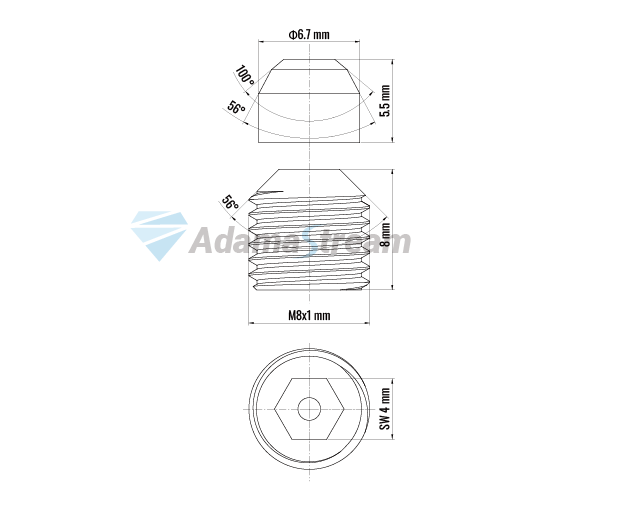

Specifications

Orifice Type
Orifice Type
Sapphire
Thread Pitch
Thread Pitch
M8*1
Spanner Width
Spanner Width
4 mm
Sealing Angle
Sealing Angle
56°
Spary Angle
Spray Angle
0°
Working Pressure
Working Pressure
4137bar/60,000psi
Connection Type
Connection Type
Screw-in
Net Weight
Net Weight
0.003kg
Similar To
Similar To
Type 082
Replacing
Replacing
MVT

Properties and Advantages

  • High-Pressure Stability: Operates reliably under 60,000 psi / 4137 bar, perfect for all ultra-high-pressure cleaning tasks.
  • High Cohesive Jet Technology: Produces a high-power, concentrated water jet, minimizing energy loss and maximizing performance.
  • Premium Sapphire Orifice: Every sapphire orifice undergoes strict polishing and testing, ensuring no scratches or cracks, delivering consistent and stable water jets.
  • Durable Stainless Steel Mount: Made from high-performance stainless steel with a hardness of 40-50 HRC, ensuring long-lasting durability.
  • Extensive Industry Experience: Over 15 years of experience in ultra-high-pressure waterjet technology, providing advanced design, testing, assembly, and quality control.

Applications

  • Surface cleaning & preparation
  • Paint removal from ships
  • Heat exchanger tube cleaning
  • Pipe cleaning
  • Tank & Vessel cleaning
  • Descaling removal
  • Deburring removal
  • Ship hull cleaning
  • Preparation for highway overlay
  • Concrete surface preparation
  • Hydro demolition
  • Water jet cutting
  • Corrosion removal from pilings
  • Marine surface preparation
  • Oil Rig, Oil Refinery, and Oil Field Cleaning

Standard Size Available

Orifice SizeArticle Number
mminchPremiumEconomy
0.10.004ADM13S-H010ADM13S-M010
0.13.005ADM13S-H013ADM13S-M013
0.15.006ADM13S-H015ADM13S-M015
0.18.007ADM13S-H018ADM13S-M018
0.20.008ADM13S-H020ADM13S-M020
0.23.009ADM13S-H023ADM13S-M023
0.25.010ADM13S-H025ADM13S-M025
0.28.011ADM13S-H028ADM13S-M028
0.30.012ADM13S-H030ADM13S-M030
0.33.013ADM13S-H033ADM13S-M033
0.35.014ADM13S-H035ADM13S-M035
0.38.015ADM13S-H038ADM13S-M038
0.41.016ADM13S-H041ADM13S-M041
0.46.018ADM13S-H046ADM13S-M046
0.50.020ADM13S-H050ADM13S-M050
0.53.021ADM13S-H053ADM13S-M053
0.56.022ADM13S-H056ADM13S-M056
0.58.023ADM13S-H058ADM13S-M058
0.61.024ADM13S-H061ADM13S-M061
0.64.025ADM13S-H064ADM13S-M064
0.66.026ADM13S-H066ADM13S-M066
0.69.027ADM13S-H069ADM13S-M069
0.71.028ADM13S-H071ADM13S-M071
0.74.029ADM13S-H074ADM13S-M074
0.76.030ADM13S-H076ADM13S-M076
0.79.031ADM13S-H079ADM13S-M079
Additional size are available upon request.
