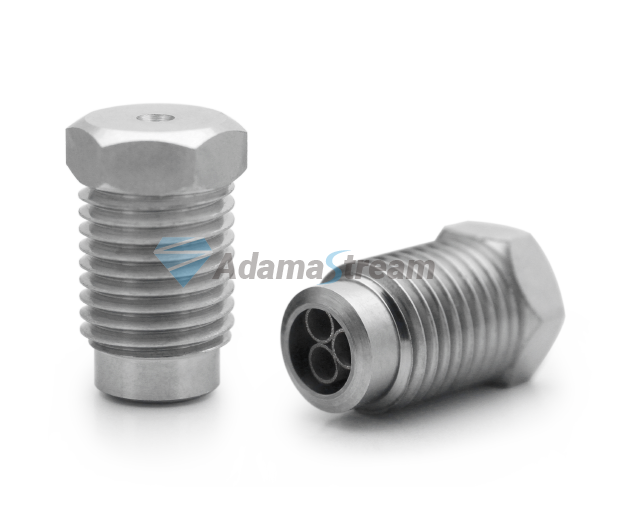

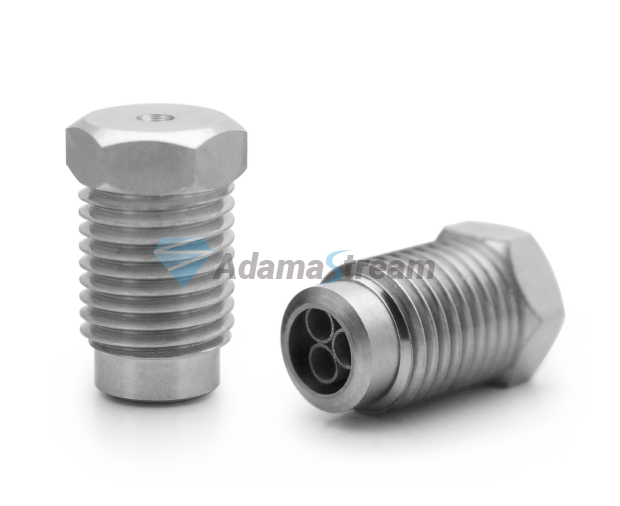

ADM10F Sapphire Nozzles

  • Model No.: ADM10F
  • Equipped with: Flow Straighteners (Jet Calmer / Flow Stabilizer)
  • Replacing: 3024/3546, Type 972, OS6, Hornet, UHP-X, 201950, BN-10095, MP-4024

Description

Our sapphire nozzles are designed for 60,000 psi (4137 bar) pressure, providing stable and efficient performance. These nozzles deliver consistent performance and exceptional durability in a wide range of industrial cleaning, Hydro demolition, and surface preparation & treatment tasks.

Share

Specifications

Orifice Type
Orifice Type
Sapphire
Thread Pitch
Thread Pitch
3/8"-24
Spanner Width
Spanner Width
3/8"
Sealing Angle
Sealing Angle
112°
Spary Angle
Spray Angle
Working Pressure
Working Pressure
4137bar/60,000psi
Connection Type
Connection Type
Screw-in
Net Weight
Net Weight
0.007kg
Similar To
Similar To
3024/3546, Type 972, OS6, Hornet, UHP-X, 201950, BN-10095, MP-4024
Replacing
Replacing
Gatti / MVT / StoneAge / Jetstream / NLB / Flow

Properties and Advantages

  • High-Pressure Stability: Operates reliably under 60,000 psi / 4137 bar, perfect for all ultra-high-pressure cleaning tasks.
  • High Cohesive Jet Technology: Produces a high-power, concentrated water jet, minimizing energy loss and maximizing performance.
  • Premium Sapphire Orifice: Every sapphire orifice undergoes strict polishing and testing, ensuring no scratches or cracks, delivering consistent and stable water jets.
  • Durable Stainless Steel Mount: Made from high-performance stainless steel with a hardness of 40-50 HRC, ensuring long-lasting durability.
  • Extensive Industry Experience: Over 15 years of experience in ultra-high-pressure waterjet technology, providing advanced design, testing, assembly, and quality control.

Applications

  • Surface cleaning & preparation
  • Paint removal from ships
  • Heat exchanger tube cleaning
  • Pipe cleaning
  • Tank & Vessel cleaning
  • Descaling removal
  • Deburring removal
  • Ship hull cleaning
  • Preparation for highway overlay
  • Concrete surface preparation
  • Hydro demolition
  • Water jet cutting
  • Corrosion removal from pilings
  • Marine surface preparation
  • Oil Rig, Oil Refinery, and Oil Field Cleaning

Standard Size Available

Orifice SizeArticle Number
mminchPremiumEconomy
0.10.004ADM10S-H010FADM10S-M010F
0.13.005ADM10S-H013FADM10S-M013F
0.15.006ADM10S-H015FADM10S-M015F
0.18.007ADM10S-H018FADM10S-M018F
0.20.008ADM10S-H020FADM10S-M020F
0.23.009ADM10S-H023FADM10S-M023F
0.25.010ADM10S-H025FADM10S-M025F
0.28.011ADM10S-H028FADM10S-M028F
0.30.012ADM10S-H030FADM10S-M030F
0.33.013ADM10S-H033FADM10S-M033F
0.35.014ADM10S-H035FADM10S-M035F
0.38.015ADM10S-H038FADM10S-M038F
0.41.016ADM10S-H041FADM10S-M041F
0.46.018ADM10S-H046FADM10S-M046F
0.50.020ADM10S-H050FADM10S-M050F
0.53.021ADM10S-H053FADM10S-M053F
0.56.022ADM10S-H056FADM10S-M056F
0.58.023ADM10S-H058FADM10S-M058F
0.61.024ADM10S-H061FADM10S-M061F
0.64.025ADM10S-H064FADM10S-M064F
0.66.026ADM10S-H066FADM10S-M066F
0.69.027ADM10S-H069FADM10S-M069F
0.71.028ADM10S-H071FADM10S-M071F
0.74.029ADM10S-H074FADM10S-M074F
0.76.030ADM10S-H076FADM10S-M076F
0.79.031ADM10S-H079FADM10S-M079F
Additional size are available upon request.
