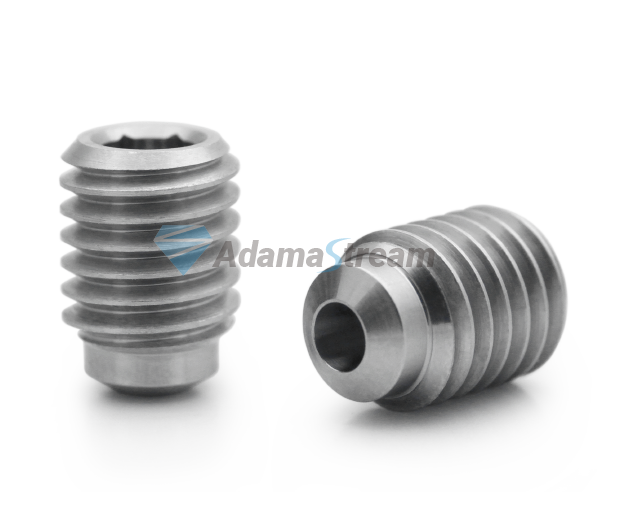

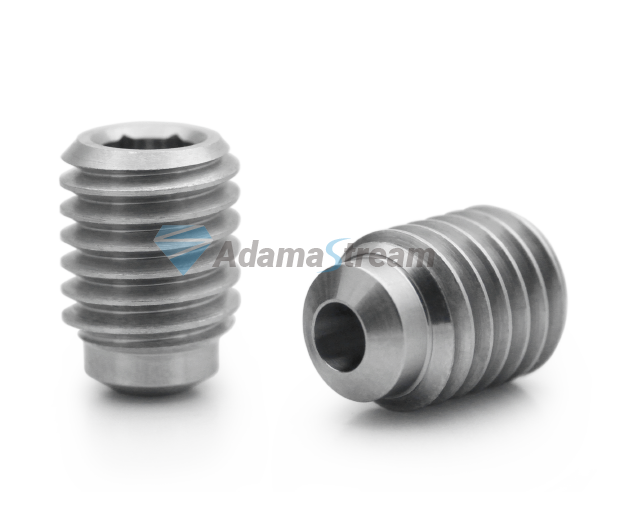

ADM09 Sapphire Nozzles

  • Model No.: ADM09
Share

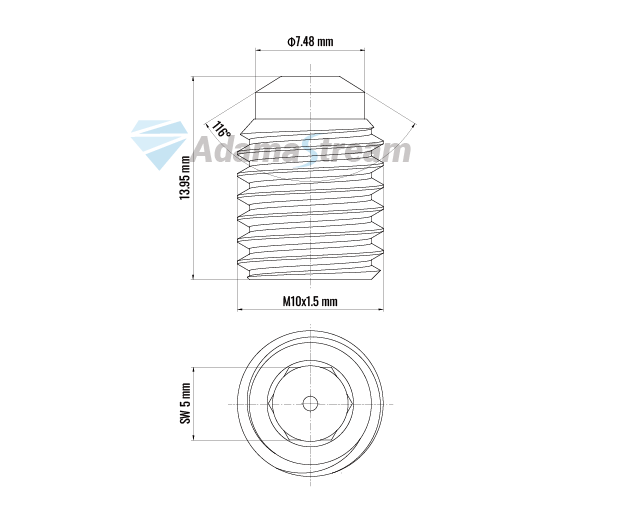

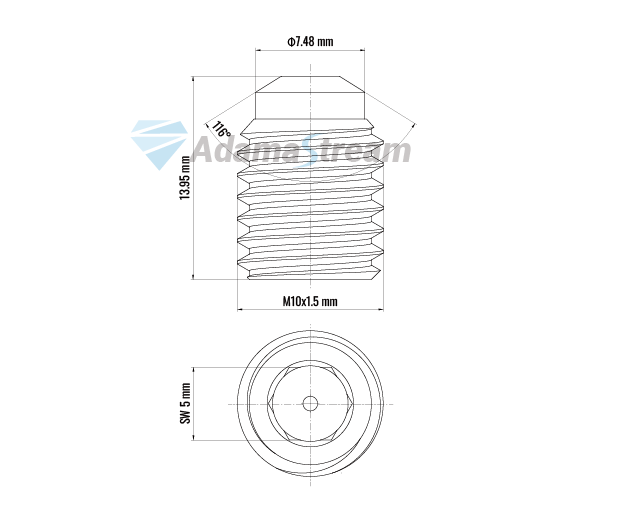

Specifications

Orifice Type
Orifice Type
Sapphire
Thread Pitch
Thread Pitch
M10*1.5
Spanner Width
Spanner Width
5 mm
Sealing Angle
Sealing Angle
116°
Spary Angle
Spray Angle
Working Pressure
Working Pressure
4137bar/60,000psi
Connection Type
Connection Type
Screw-in
Net Weight
Net Weight
0.006kg

Properties and Advantages

  • High-Pressure Stability: Operates reliably under 60,000 psi / 4137 bar, perfect for all ultra-high-pressure cleaning tasks.
  • High Cohesive Jet Technology: Produces a high-power, concentrated water jet, minimizing energy loss and maximizing performance.
  • Premium Sapphire Orifice: Every sapphire orifice undergoes strict polishing and testing, ensuring no scratches or cracks, delivering consistent and stable water jets.
  • Durable Stainless Steel Mount: Made from high-performance stainless steel with a hardness of 40-50 HRC, ensuring long-lasting durability.
  • Extensive Industry Experience: Over 15 years of experience in ultra-high-pressure waterjet technology, providing advanced design, testing, assembly, and quality control.

Applications

  • Surface cleaning & preparation
  • Paint removal from ships
  • Heat exchanger tube cleaning
  • Pipe cleaning
  • Tank & Vessel cleaning
  • Descaling removal
  • Deburring removal
  • Ship hull cleaning
  • Preparation for highway overlay
  • Concrete surface preparation
  • Hydro demolition
  • Water jet cutting
  • Corrosion removal from pilings
  • Marine surface preparation
  • Oil Rig, Oil Refinery, and Oil Field Cleaning

Standard Size Available

Orifice SizeArticle Number
mminchPremiumEconomy
0.10.004ADM09S-H010ADM09S-M010
0.13.005ADM09S-H013ADM09S-M013
0.15.006ADM09S-H015ADM09S-M015
0.18.007ADM09S-H018ADM09S-M018
0.20.008ADM09S-H020ADM09S-M020
0.23.009ADM09S-H023ADM09S-M023
0.25.010ADM09S-H025ADM09S-M025
0.28.011ADM09S-H028ADM09S-M028
0.30.012ADM09S-H030ADM09S-M030
0.33.013ADM09S-H033ADM09S-M033
0.35.014ADM09S-H035ADM09S-M035
0.38.015ADM09S-H038ADM09S-M038
0.41.016ADM09S-H041ADM09S-M041
0.46.018ADM09S-H046ADM09S-M046
0.50.020ADM09S-H050ADM09S-M050
0.53.021ADM09S-H053ADM09S-M053
0.56.022ADM09S-H056ADM09S-M056
0.58.023ADM09S-H058ADM09S-M058
0.61.024ADM09S-H061ADM09S-M061
0.64.025ADM09S-H064ADM09S-M064
0.66.026ADM09S-H066ADM09S-M066
0.69.027ADM09S-H069ADM09S-M069
0.71.028ADM09S-H071ADM09S-M071
0.74.029ADM09S-H074ADM09S-M074
0.76.030ADM09S-H076ADM09S-M076
0.79.031ADM09S-H079ADM09S-M079
Additional size are available upon request.
